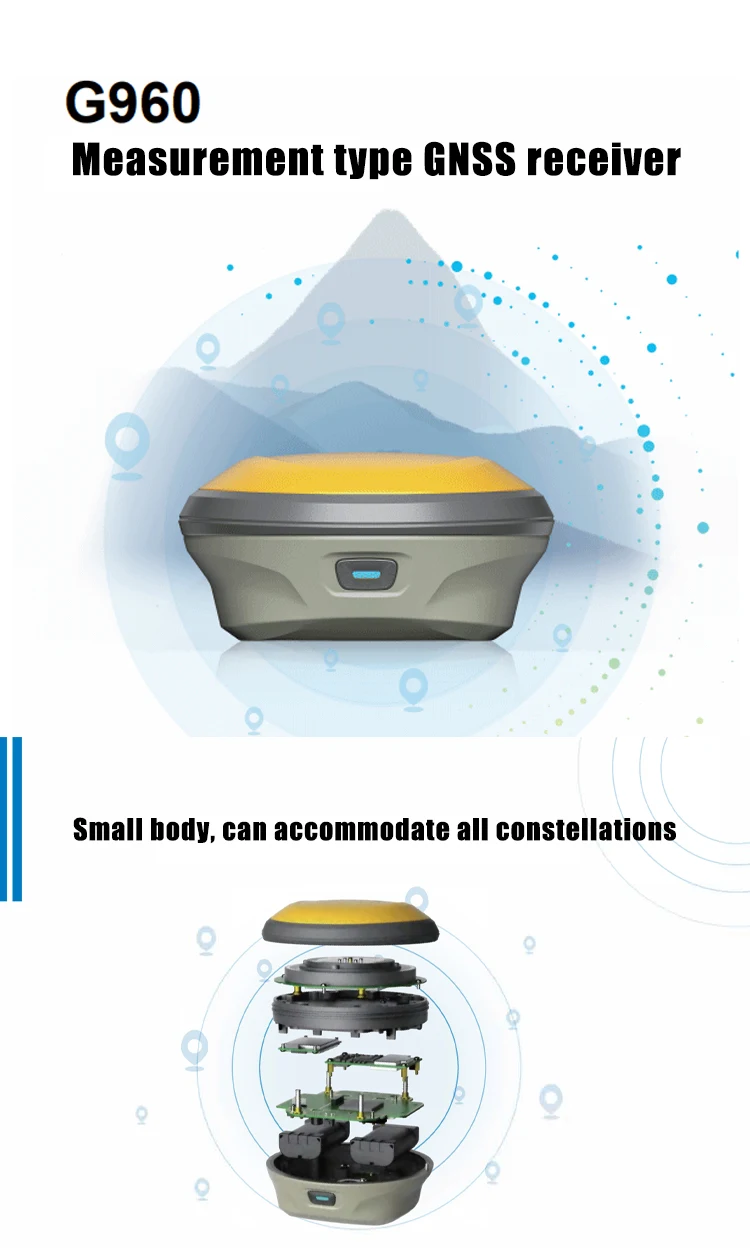

High-Precision GNSS Rtk Receiver Unistrong G960 RTK GPS Beidou Positioning Base Station Engineering Surveying
-
Receiver Type
- Multi-frequency, multi-GNSS receiver, supporting GPS, BeiDou, GLONASS, etc.
-
Positioning Accuracy
- Single-point Positioning: Horizontal ≤2.5m, Vertical ≤3.5m
- SBAS Positioning: Horizontal ≤1.5m, Vertical ≤2.5m
- RTK Positioning: Horizontal ≤1cm + 1ppm, Vertical ≤2cm + 1ppm
-
Measurement Rate
- Real-time Output: 1Hz ~ 20Hz selectable
- Post-processing: 1Hz ~ 100Hz selectable
-
Communication Interfaces
- Serial Port: 1 x RS232
- Network: 1 x 10/100 Base-T Ethernet
- Bluetooth: Supports Bluetooth 4.0
- WiFi: Supports 802.11b/g/n
-
Power System
- Built-in Lithium Battery: 8 hours of operation
- External Power: 9 ~ 28V DC
-
Physical Characteristics
- Dimensions: 200mm x 120mm x 65mm
- Weight: 1.2kg (including battery)
- Operating Temperature: -40°C ~ +60°C
-
Others
- IP Rating: IP67
- Supports Firmware Online Upgrade
the key application scenarios for the unistrong G960 GNSS receiver
-
Surveying and Geospatial Information Systems (GIS)
- Used for high-precision positioning in cadastral surveys, photogrammetry, engineering surveys, etc.
- Integrated with GIS software for map-making, resource investigation, facility management, and more.
-
Engineering Construction
- Applied in the positioning and stakeout for infrastructure construction like roads, railways, and hydraulic engineering.
- Can be used for the survey of buildings, bridges, and other engineering projects, providing centimeter-level accuracy.
-
Precision Agriculture
- Used for the auto-steering navigation of tractors, harvesters, and other agricultural machinery.
- Enables precise planting, spraying, and harvesting operations in the field.
-
Mining Surveying
- Applied in the topographic mapping, blast control, and stockpile monitoring of open-pit mines.
- Provides high-precision location data to support geological exploration and mining operations.
-
Geohazard Monitoring
- Used for displacement monitoring of active faults, landslides, and other geologic hazard areas.
- Real-time data collection to support decision-making for disaster prevention and mitigation.
-
Scientific Research
- Widely used in atmospheric physics, marine surveying, astronomical observation, and other scientific fields.
- Provides high-accuracy time synchronization and positioning data to meet the needs of scientific research.
If you want to know more about our products, please consult us!
Our Services and Advantages
Services
1.Any inquiries will be replied within 12 hours.
2.All our products have one year warranty, And we sure the products will be free for maintenance within warranty period.
3.All products will have been strictly quality checked in factory before sending out.
Certifications
FAQ
1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder
4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
