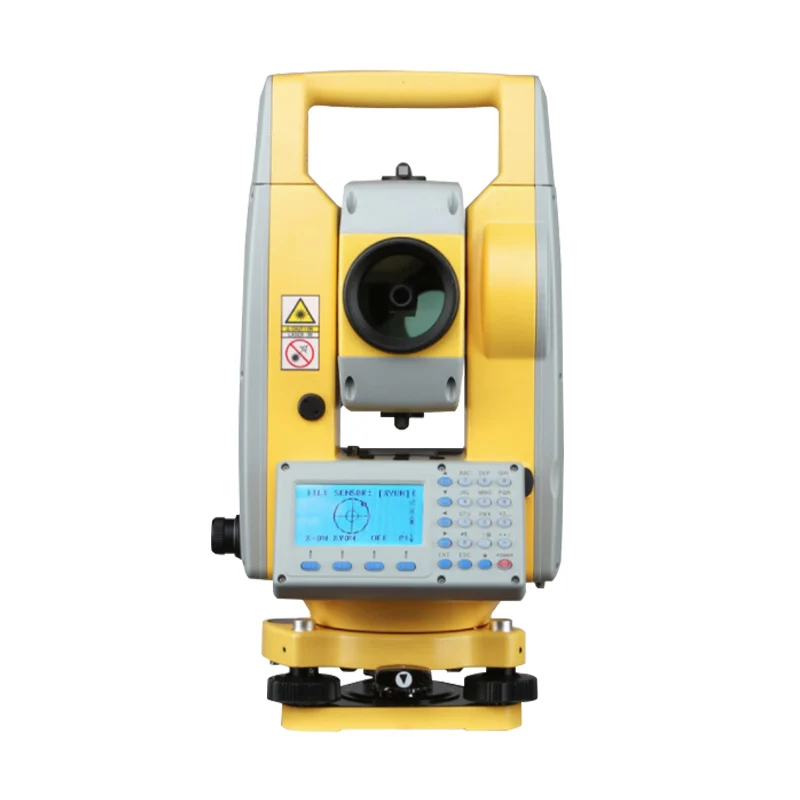

Surveying Equipment SOUTH Total Station NTS-332R10U Automatic Total Station

Brand Name : SOUTH

Model Number : NTS-332R10U

Place of Origin : China

MOQ : 1 set

Price : ＄1000.00

Payment Terms : T/T, L/C

Delivery Time : 30 work day

Product Name : Robotic Total Station SOUTH NTS-332R10U

Customized support : OEM, ODM

Power : lithium battery

Place of Origin Guangdong, China Warranty 1 years Customized support OEM, ODM, OBM Brand Name SOUTH : 1000m

Single Prism : 5000m

Accuracy: Non Prism : 3+2ppm

Accuracy : 2"

Resolving Power : 3"

Contact Now

Surveying Equipment SOUTH Total Station NTS-332R10U Automatic Total Station

Product Description
Surveying Equipment SOUTH Total Station NTS-332R10U Automatic Total Station
Surveying Equipment SOUTH Total Station NTS-332R10U Automatic Total Station
Surveying Equipment SOUTH Total Station NTS-332R10U Automatic Total Station
Surveying Equipment SOUTH Total Station NTS-332R10U Automatic Total Station
Surveying Equipment SOUTH Total Station NTS-332R10U Automatic Total Station
Surveying Equipment SOUTH Total Station NTS-332R10U Automatic Total Station
Specification

Distance Measurement
Reflectorless
1000m
Single Prism
5000m
Accuracy: Non Prism
3+2ppm
Accuracy: Prism
2+2ppm
Sheet
3+2ppm
Measurement Time
1.2s in fine
0.2s in tracking
Atmospheric Correction
Manual input, Auto correction
Prism Constant
Manual input, Auto correction
Temperature Correction
Manual input, Auto correction
Distance Reading
Max: 99999999.999 Min: 1mm
Angle Measurement
Accuracy
2"
Method
Absolute, continuous
Disk Diameter
79mm
Detection Method
V: Dual, H: Dual
Angle Reading
Min: 1"
Telescope
Erect
Tube Length
152mm
Effective Aperture
45mm (EDM 47mm)
Magnification
30x
Field Of View
1°30'
Resolving Power
3"
Minimum Focus Distance
1.5m
Muitiple/Additive Constant
100/0
Keyboard And Display
Keyboard
Alphanumeric 28 Keys
Display
2.7 inches Black & White LCD
Resolution
160*96 dpi
Position
Face 1, Face 2
Operation System
Memory
16000 points
Compensator
System
Liquid, Dual axis
Working Range
±6'
Accuracy
1"
Plummet
Laser Plummet (Default)
Accuracy
±1.5mm @1.5m
Laser Brightness
5 levels adjustable
Wavelength
635nm
Laser Class
Class 2
Laser Power
0.5mW
Optical Plummet (Optional)
Erect
Magnification
3x
Focusing Range
0.5m ~ ∞
Field Of View
5"
Keyboard And Display
Keyboard
Alphanumeric 28 Keys
Display
2.7 inches Black & White LCD
Resolution
160*96 dp
Position
Face 1, Face 2
Interface
Data Interface
USB Flash Disk
Battery
Type
Lithium
Voltage
7.4V
Operating time
15 hours
Vial
Plate Vial
30" /2mm
Circular Vial
8' /2mm
General
IP Rate
IP55
Temperature Range
-20°C -- +50°C
Dimension
200*190*330mm
Weight
5.5kg

Why Choose Us

Surveying Equipment SOUTH Total Station NTS-332R10U Automatic Total Station
GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike
Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.
Surveying Equipment SOUTH Total Station NTS-332R10U Automatic Total Station
Certifications
Surveying Equipment SOUTH Total Station NTS-332R10U Automatic Total Station
Surveying Equipment SOUTH Total Station NTS-332R10U Automatic Total Station
Company Profile
Surveying Equipment SOUTH Total Station NTS-332R10U Automatic Total Station

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Our Service
Surveying Equipment SOUTH Total Station NTS-332R10U Automatic Total Station

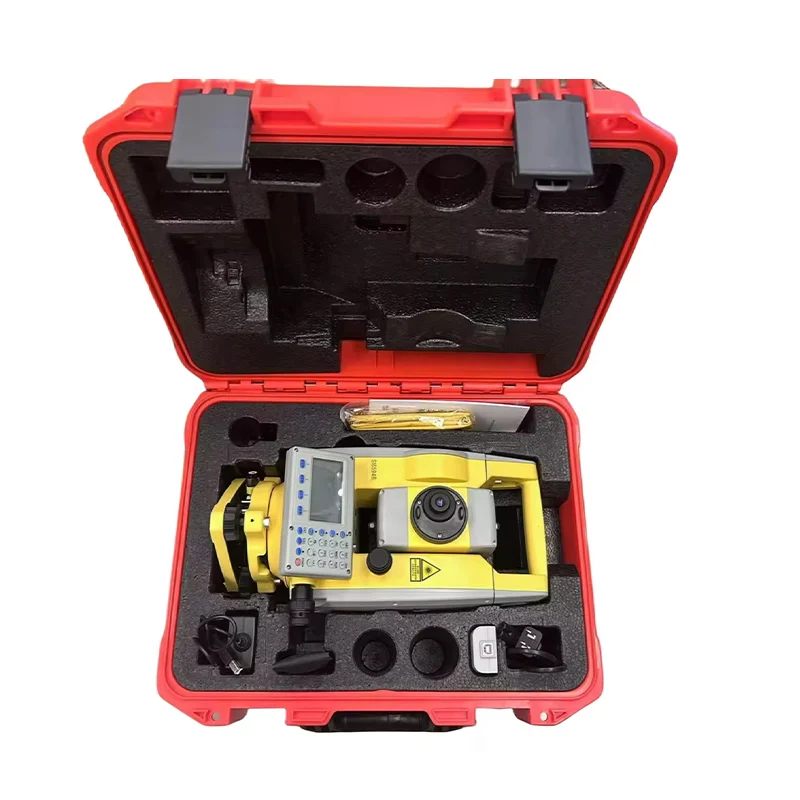

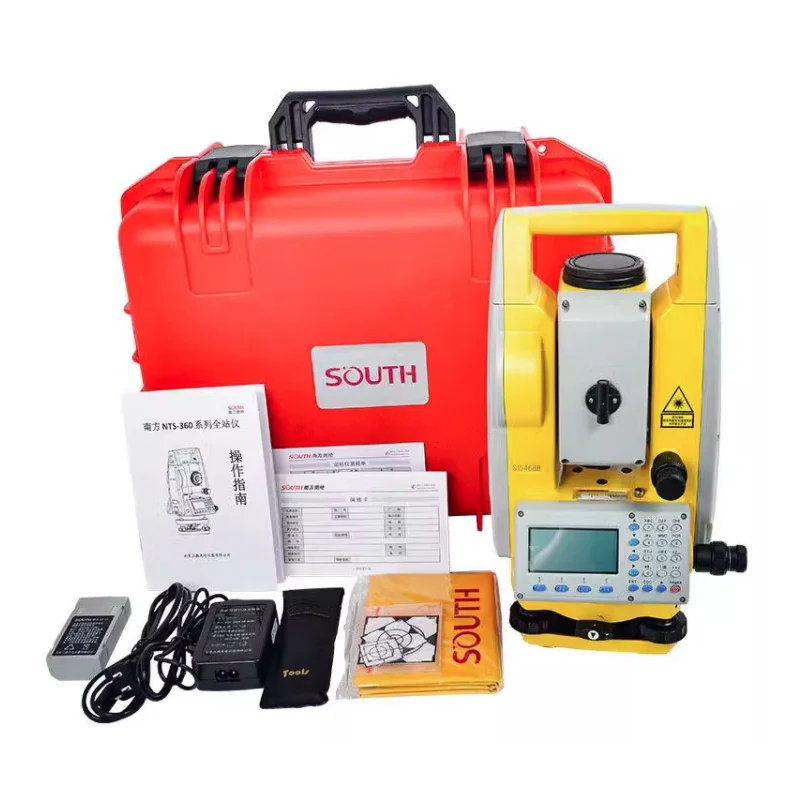

Packing & Delivery
